Educational simulator represents a proper and natural adaptation to the new demands of labour market requiring high training levels of all the operators of air-conditioning systems installed in great industrial and business complexes. This equipment also includes an industrial controller that enables a detailed analysis of the automatic control system for an air-conditioning installation at the variation of operating parameters. It must necessarily
be connected to the PC.
TRAINING PROGRAM
• Studying the transformation the air undergoes when crossing the various sections of an air handling unit, with the aid of the psychrometric chart
• Assessing the air supply conditions to meet the thermo-hygrometric needs of the room having to be airconditioned
• Analyzing the operation of temperature and humidity regulators for air-handling unit
• Proportional and ON/OFF control
• Air dampers control according to temperature
• Antifreeze function
• Control of alarms
• Supervision of technical installations
TECHNICAL SPECIFICATIONS

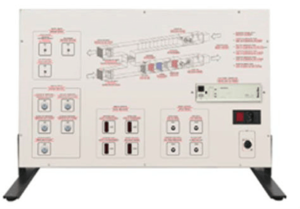

• Color panel reproducing the air-handling unit
• Configurable universal controller for air conditioning having the following characteristics:
– 8 universal inputs
– 4 analog outputs
– 6 digital outputs
– 3 control loops
– Controller-PC interface module
• 5 potentiometers for simulating the following analog inputs:
– outdoor air temperature
– dew point
– supply air temperature
– return air temperature
– return air relative humidity
• 4 bargraph LEDs for simulating the following analog outputs:
– control signal for the motor of pre-heating battery
– control signal for the motor of cooling/dehumidification battery
– control signal for the motor of post-heating battery
– control signal for the motor of air dampers
• 3 switches for simulating the following digital inputs:
– fans pressure switches
– air filter pressure switch
– antifreeze thermostat
• 4 LEDs for simulating the following digital outputs:
– fans control
– humidifier pump control
– pre-heating battery pump control
– alarm
• System supervision software
• Power supply: 230 Vac 50 Hz single-phase – 200 VA (Other voltage and frequency on request)
