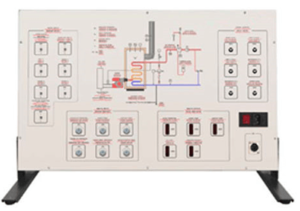

Hot Water Production Simulator Manufacturer in India
Atico Export is a trusted Hot Water Production Simulator manufacturer and supplier in India, delivering high-quality training equipment for thermal and energy engineering education. Our simulators are designed for accurate demonstration of real-world heating systems, helping students gain hands-on experience. Widely used in vocational training institutes, technical universities, and engineering colleges, Atico’s simulators ensure durability, precision, and practical learning outcomes. We export our products globally with full technical support.
Educational simulator is designed for the study of the operation of the components of a heating plant for hot water production with oil fired boiler. This heating plant is equipped with all the safety devices stated by the rules in force and it enables to introduce some faults onto the safety and protection systems. The simulator enables to analyze the system response versus the thermal power required by dissipators, as well as the boiler combustion efficiency versus the set operating parameters. This simulator must necessarily be connected with a PC (supplied on demand).
TRAINING PROGRAM
• Protection devices of a heating plant
• Safety devices of a heating plant
• ON/OFF control: analysis of the operation of the thermostat for controlling the hot water production temperature:
recirculation pump operation
• Outdoor reset control: variation of hot water production temperature versus outdoor air temperature
• Analyzing the combustion efficiency of a boiler
TECHNICAL SPECIFICATIONS
• Color panel reproducing the heating plant
• Board for data acquisition and control of output signals from actuators
• Connection with PC via USB cable
• 6 potentiometers for simulating the following analog inputs:
– outdoor air temperature (that determines the hot water production temperature)
– flow rate of oil feeding the burner
– level of thermal power dissipated by radiator
– combustion air temperature
– combustion products temperature
– oxygen percentage in the combustion products
• 5 bar-graph LEDs for simulating the following analog outputs:
– boiler water temperature
– level of thermal power supplied to the boiler
– level of thermal power supplied to radiators
– level of CO2 in the combustion products
– boiler combustion efficiency
• 7 switches for simulating the following digital inputs:
– system operation enabling
– burner starting
– pump for feeding radiators starting
– control thermostat break
– safety thermostat break
– safety pressure switch break
– fuel shut-off valve break
• 6 LEDs for simulating the following digital outputs:
– burner starting
– radiators pump state
– recirculation pump state
– safety thermostat intervention
– safety pressure switch intervention
– burner lockout
• Program for simulating the operation of the hot water production unit control system
• Creation software that can be used to modify the application programs according to one’s own needs
• Power supply: 230 Vac 50 Hz single-phase – 200 VA (Other voltage and frequency on request)
