Atico Export is a leading Hot Water Production Module manufacturer in India, offering advanced, durable, and efficient training modules for engineering and technical institutes. Designed for practical learning, our modules simulate real-time hot water production systems, ideal for vocational and thermal engineering education.

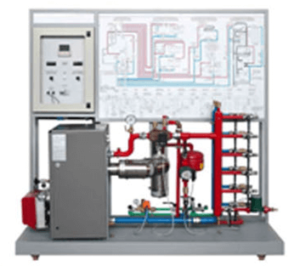

This module for the production of hot water is specifically designed for educational aims and it can be easily connected with dissipation modules. It includes a hot water boiler with oil burner, the relevant safety devices and utilities, as well as a system for the distribution of water to the users; it consists of visible and easy to access industrial components and instruments, correctly connected and operating.
TRAINING PROGRAM
• Procedures for:
– water filling and air bleeding from the system
– draining and checking system tightness
– starting the plant and checking the operation of safety devices and of boiler protections
• Protection devices of a machine room
• Safety devices of a machine room
• ON/OFF control: analysis of the operation of the thermostat controlling the hot water production temperature: recirculation pump operation
• With optional item flue-gas analyzer:
– evaluation of boiler combustion efficiency
– variation of air and fuel flow to the burner and verification of the effects on combustion efficiency
– assessment of the quality of the coupling between burner and boiler
TECHNICAL SPECIFICATIONS
• Steel structure mounted on wheels, painted and treated in the oven
• Color silk-screen-printed schematic diagram of system hydraulic circuit with warning LEDs
• Cast iron boiler with thermometer, control thermostat and safety thermostat
• 17 kW oil burner
• Fuel tank with level indicator
• Automatic water filling device including pressure reducer, check valve, stop valve, filter, pressure gauge for reading system pressure
• Air separator, expansion vessel, bleed valves
• Anti-condensation by-pass circuit including recirculation pump, check valve, on-off valves, control thermostat
• Flue gas collection and exhaust system including thermometer
• Fuel intercepting valve, safety pressure switch, safety valve
• Delivery and return manifolds with on-off valves on each branch
• Pipes connecting the various components painted with different colors
• Switchboard
• Additional instruments: digital multimeter, digital thermometers with Pt100 probes, pressure gauge
• Quick connections
• Power supply: 230 Vac 50 Hz single-phase – 400 VA (Other voltage and frequency on request)
