Hot Water Production Unit Manufacturer in India
Atico Export is a leading Hot Water Production Unit Manufacturer in India, offering advanced and reliable systems for educational and industrial use. Our units are designed for efficient performance, practical training, and long-lasting use. Ideal for engineering colleges and technical institutes, we ensure global delivery with full support and quality assurance.

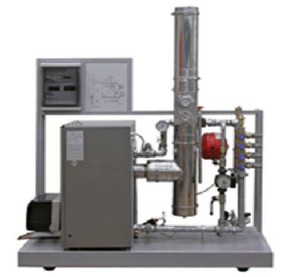

This module for the production of hot water can easily be connected with dissipation modules, via flexible pipes. It includes a hot water boiler with oil burner (or with gas burner, on demand), the relevant safety devices and utilities, as well as a system for the distribution of water to the users; it consists of visible and easy to access industrial components and instruments, correctly connected and operating.
TRAINING PROGRAM
• Procedures for:
– water filling and air bleeding from the system
– draining and checking system tightness
– starting the plant and checking the operation of boiler safety and protection devices
• Protection devices of a heating plant
• Safety devices of a heating plant
• ON/OFF control: analysis of the operation of the thermostat for controlling the hot water production temperature:
recirculation pump operation
• With optional item flue-gas analyzer:
– evaluation of boiler combustion efficiency
– variation of air and fuel flow rate to the burner and verification of the effects on combustion efficiency
– assessment of the quality of the coupling between burner and boiler
TECHNICAL SPECIFICATIONS
• Color silk-screen-printed schematic diagram of system hydraulic circuit with warning LEDs
• Cast iron boiler of with thermometer, control thermostat and safety thermostat
• 17 kW oil burner
• Fuel tank with level indicator
• Automatic water filling device including:
– pressure reducer
– check valve
– stop valve
– filter
– pressure gauge for reading system pressure
• Air separator, expansion vessel, bleed valves
• Anti-condensation by-pass circuit including:
– recirculation pump
– check valve
– on-off valves
– control thermostat
• Flue gas collection and exhaust system including thermometer
• Fuel intercepting valve, safety pressure switch, safety valve
• Delivery and return manifolds with on-off valves on each branch
• Switchboard
• Additional instruments:
– digital multimeter
– digital thermometers with Pt100 probes
– pressure gauge
• Quick connections
• Power supply: 230 Vac 50 Hz single-phase – 300 VA (Other voltage and frequency on request)
