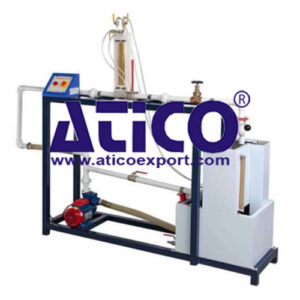

The apparatus consists of a Nozzle meter made of stainless steel houses in Acrylic Test Section.
Present set-up is self-contained water re-circulating unit, provided with a sump tank and a centrifugal
pump. Flow control valve and by-pass valve are fitted in water line to conduct the experiment
on different flow rates. Flow rate of water is measured with the help of measuring tank and
stop watch.-up.
Experimentation/Learning Objectives
To measure discharge through Nozzle meter.
To calculate co-efficient of discharge for Nozzle mete
Specification
Nozzlemeter : Nozzle of Stainless Steel, Housing of Clear Acrylic.Compatible to 1” dia pipe.
Water Circulation : FHP Pump, Crompton make
Flow Measurement : Using Measuring Tank, Capacity 25 Ltrs. (approx.)With Electronic Stop Watch
Sump Tank : Capacity 55 Ltrs. (approx.)
Control Panel Comprises of :
Standard make On/Off Switches, Mains Indicator, etc.
Tanks will be made of Stainless Steel.
An ENGLISH instruction manual consisting of experimental procedures, block diagram etc. will
be provided along with the Apparatus
The whole set-up is well designed and arranged on a rigid structure painted with industrial PU Paint.
Utilities Required
Electricity Supply: Single Phase 220 V AC, 50Hz, 5-15 amp combined socket with earth connection.
Water Supply (Initial Fill).
Floor Drain required.
Floor Area Required: 1.5 m x 0.75 m
