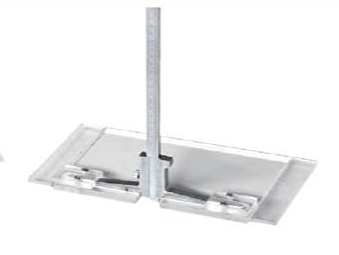

The module enables to evaluate the characteristics of flow over weirs with different shapes. It consists of 4 weir elements that an be placed at the end of the open channel of the hydraulic bench. The water is feed in the channel through a dispenser in order to reduce liquid turbulence and ensuring a more regular flow. The measurement of level inside the channel is done through a depth gauge that is dropped onto the free surface of water. The used weirs are fastened to the holder mounted at the end of the channel by screws.
TRAINING PROGRAM:
• Demonstration of flow over weirs features with rectangular opening
• Demonstration of flow over weirs features with V opening
• Calculation of discharge coefficient
TECHNICAL CHARACTERISTICS:
• Dimensions of weir plates:
– height: 160 mm;
– width of 200 mm
• Rectangular weir
• “V” weir 60°
• “V” weir 90°
• Trapezoidal weir or ”Cipolletti“ type weirs
• Depth gauge, range: 0-300 mm resolution 0.05 mm
