Description

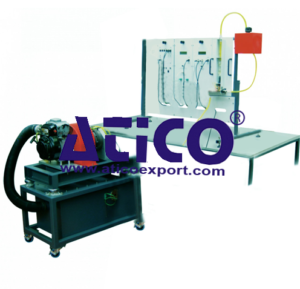

A versatile hydraulic engine test bed with comprehensive instrumentation. The equipment requires minimum services, installation and outlay. When used with one of optional single-cylinder engines, it safely and effectively enables study and demonstrations of the most important features of the engine. In addition, optional ancillaries are available to extend the range of study, demonstrations and investigations even further. The equipment is fully compatible with Versatile Data Acquisition System. Using enables accurate real-time data capture, monitoring and display, calculation and charting of all relevant parameters on a computer (not supplied) making tests quick and reliable. The main components of the test set are: • a heavy fabricated portable bed • a bench-mounted instrumentation frame The bed sits on a trolley for portability. It includes a robust, precision-machined, trunnion-mounted hydraulic dynamometer. A significant advantage of using a hydraulic dynamometer is that no large electrical supplies are required as the engine power is dissipated into the water used to load the dynamometer. The dynamometer applies load according to the flow rate and level of water in the casing. An accurate needle valve controls the flow rate and level. An electronic load cell measures torque. The engines (available separately) are supplied pre-mounted on a sturdy precision base plate. When the engine is initially mounted onto the test bed or exchanged with an alternative engine, dowels and slots locate the engine quickly, accurately and reliably. To enable students to measure air flow, an air-box and orifice plate are located underneath the engine bed on the trolley. The instrumentation is mounted on a sturdy frame. The frame has a single power inlet and several power outlets to supply the various display units (either those provided as standard or those provided as optional extras). The instrumentation and test bed are separate in order to avoid vibration being transmitted from the engine to the measuring devices. The engines (available separately) include an exhaust thermocouple, dynamometer coupling, hoses and fittings. we can also supply the engines with premodified cylinder heads and cranks for connection to Engine Cycle Analyser. Each engine includes a colour-coded fuel tank with self-sealing couplings. The couplings ensure the engines can be connected and disconnected quickly and efficiently with minimum loss or spillage of fuel. For convenience and safety, the fuel tank can be removed for filling or for storage in a fuel locker when not in use. Removing the fuel tank also prevents unauthorised use of the equipment.
Learning Outcomes
- Enables a wide range of investigations into the characteristics of four-stroke, single-cylinder petrol and diesel engines
- Four-stroke diesel and four-stroke petrol engines available separately
- Includes comprehensive instrumentation
- Optional ancillaries available to extend the range of study even further
- Test bed trolley mounted for mobility
- Quick, convenient and accurate engine mounting and changeover
- Robust, simple hydraulic dynamometer
- No need for large electrical supplies
- Instrumentation and test bed are separate to avoid vibration being transmitted to measuring devices
- Self-sealing couplings enable quick and efficient connection and disconnection of fuel lines with minimum loss or spillage of fuel
- Works with Versatile Data Acquisition .
Specifications
- Atico is committed to a programme of continuous improvement; hence we reserve the right to alter the design and product specification without prior notice.
- Instrumentation dimensions ( fully assembled with fuel tank):
- Width 1400 mm x depth 300 mm x height 820 mm
- Bed and trolley dimension ( without engine ) :
- Width 950 mm x depth 475 mm x height 1050 mm
Weight (packed total):
- 300 kg
Dynamometer:
- Hydraulic variable fill
- Maximum absorption:
- 7.5 kW @ 7000 rev.min–1
Typical engine range:
- 3 to 4 kW, 3000 rev.min–1, 150 to 250 cc
Speed measurement:
- Proximity pick up and digital display
Torque measurement:
- Strain gauged load cell and digital display
- Air consumption measurement:
- Air-box and orifice plate, pressure transducer and digital display
Ambient air temprature and barometic pressure measurement:
- Thermocouple, pressure transducer and digital display
- Exhaust temperature measurement:
- Engine thermocouple and digital display
Fuel consumption:
- Precision volumetric fuel gauges (analogue or automatic digital versions available)
- Operating Conditions
Operating Enviroment:
- Laboratory Enviroment
Storage Temprature Range :
- –25°C to +55°C (when packed for transport)
Operating Temprature range:
- +5°C to +40°C
- Operating relative humidity range:
- 80% at temperatures < 31°C decreasing linearly to 50% at 40°C
