Specification
- Input power: single phase three wire AC220V ±10%, 50Hz
- Installed capacity: <0.2kVA
- Dimension: 600mm×600mm×1700mm
- Refrigerant
- Safety protection: Voltage leakage, current leakage protection.
Technical Description:

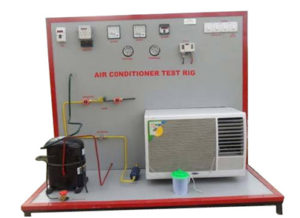

The Air Conditioning Test Rig unit is required to conduct experiments and demonstrate the process of cooling of atmospheric air. The self contained unit will be fitted with all instruments facilities so that temperature, pressure etc. may be measured at different points in the air conditioning system.
Required for Operation:
Electric supply Single Phase, 220 V AC, 50 Hz., 10 Amp.
Floor area : 2 m x 1m
Control Panel:
- Digital Voltmeter: 0-300 V
- Digital Ammeter: 0-5 Amp
- Digital Temp. Indicator with multi-channel switch
- Temperature Sensors: RTD PT-100 type.
- Standard make On/Off switch, Mains Indicator etc.
