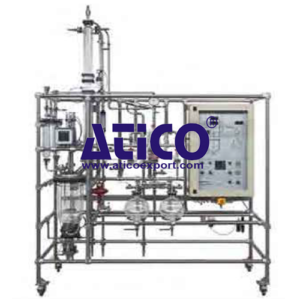

Description:
This pilot plant concerns the batch reaction; the study of kinetics is carried out versus the variation of conductivity in the
reactor. This reactor includes a cooling jacket, an electric heater and a distillation column with variable reflux condenser
and azeotropic separator. The automated version is equipped with PID controller for the automatic control of reaction
temperature and of the stirrer rpm.
TRAINING PROGRAM
This unit enables to deepen the following issues:
• Determination of reaction kinetics
• Reaction thermodynamics
• Mass and energy balance
• Automatic temp. & rpm control with PID controller
• Plant supervision by P.C.
• Exercises than can be carried out:
– kinetics of hydrolysis of ethyl acetate
– preparation of p-Toluensulfonic acid
– preparation of diethyl adipate
– reaction of urea with nitrous acid
– preparation of cyclohexanonoxime from hydroxylamine sulfate and cyclohexanone
– transformation of acetic anhydride into acetic acid and display of reaction kinetics by measurement of conductivity
– preparation of amide.
TECHNICAL SPECIFICATIONS:
• Wheeled framework of AISI 304 stainless steel
• Jacketed reactor of borosilicate glass, with capacity of 10 l
• Stirrer of AISI 304 stainless steel
• Geared motor of the stirrer with tachogenerator, and variable speed of 0 to 400 rpm
• Electric heater for reactor, P = 2.5 kW
• Distillation column of borosilicate glass, DN 50, h = 600 mm
• Reflux head of borosilicate glass equipped with solenoid valve for the control of reflux ratio
• Over head condenserof borosilicate glass, with exchange surface of 0.3 m2
• 2 flasks of glass for collecting condensate, with cap. of 5 l
• 2 graduated vessels of glass for adding reagents
• Azeotropic separator of borosilicate glass
• 2 electronic temperature indicators
• 2 thermoresistances Pt 100 with sheath of AISI 316 SS
• Microprocessor electronic conductivity transmitter
• 2 programmable timers for the control of reflux ratio
• Thyristor unit for the control of heating power
• Pneumatic valve of AISI 316 stainless steel
• Vacuum gauge of AISI 316 SS with range of – 1 to 0 bar
• Circuit for the connection with vacuum pump (not included)
• Piping and valves of AISI 304 and AISI 316 stainless steel
• Switchboard IP55, complying with EC conformity mark, including plant synoptic and ELCB
• Emergency button
REQUIRED
UTILITIES (PROVIDED BY THE CUSTOMER)
• Power supply: 400 Vac 50 Hz three-phase – 7,5 kVA
(Other voltage and frequency on request)
• Tap water: 150 l/h @ 2 bar (valve with ½” hose connector)
• Compressed air: 1 Nm³/h @ 6 bar (valve with connection
of ¼” F)
• Water drain
• Fume suction system
ACCESSORIES (NOT INCLUDED)
• Personal Computer running Windows
• Laboratory Vacuum Pump
Besides being provided with all the characteristics, this model also includes the following additional items:
• Microprocessor digital PID controller with serial card
• Supervision software for Windows: it enables to control ON-OFF signals, analog signals coming from PID controller, real-time trend and historical trend
