Ion Exchange Unit
A low cost, bench-mounted unit designed to demonstrate the use of ion-exchange resins for either continuous water softening or demineralisation. The equipment is designed to emulate the industrial operation of such units, including monitoring ‘break-through’ and regeneration cycles.
- The exchange capacities of different resin materialsWater softening using a cationic resin
- Water softening using a cationic resinRegeneration efficiency of a softening system
- Regeneration efficiency of a softening systemDemineralisation using two-bed exchange
- Demineralisation using two-bed exchange
- Regeneration efficiency of a cationic and anionic resin
Pump: Self priming diaphragm type
Flowmeter range: 10-80ml/min
Sump tank capacity: 20 litres
Anion exchange resin: 0.75 litre
Cation exchange resin: 1litre
Chemicals required (not supplied):

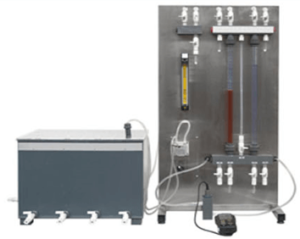

Self-contained apparatus either for single bed water softening or double bed system for demineralisation. Two vertical transparent tubes house the resins. A manifold at inlet/outlet allows flow configuration changes. Equipment includes pump, valves, conductivity meter and sumps for regenerant and test or wash solutions. Typical commercial cation and anion resins are supplied.
